Lift that lasts.
Quiet, efficient coaxial main rotors and a hybrid powerplant support 2–8 hours of flight.

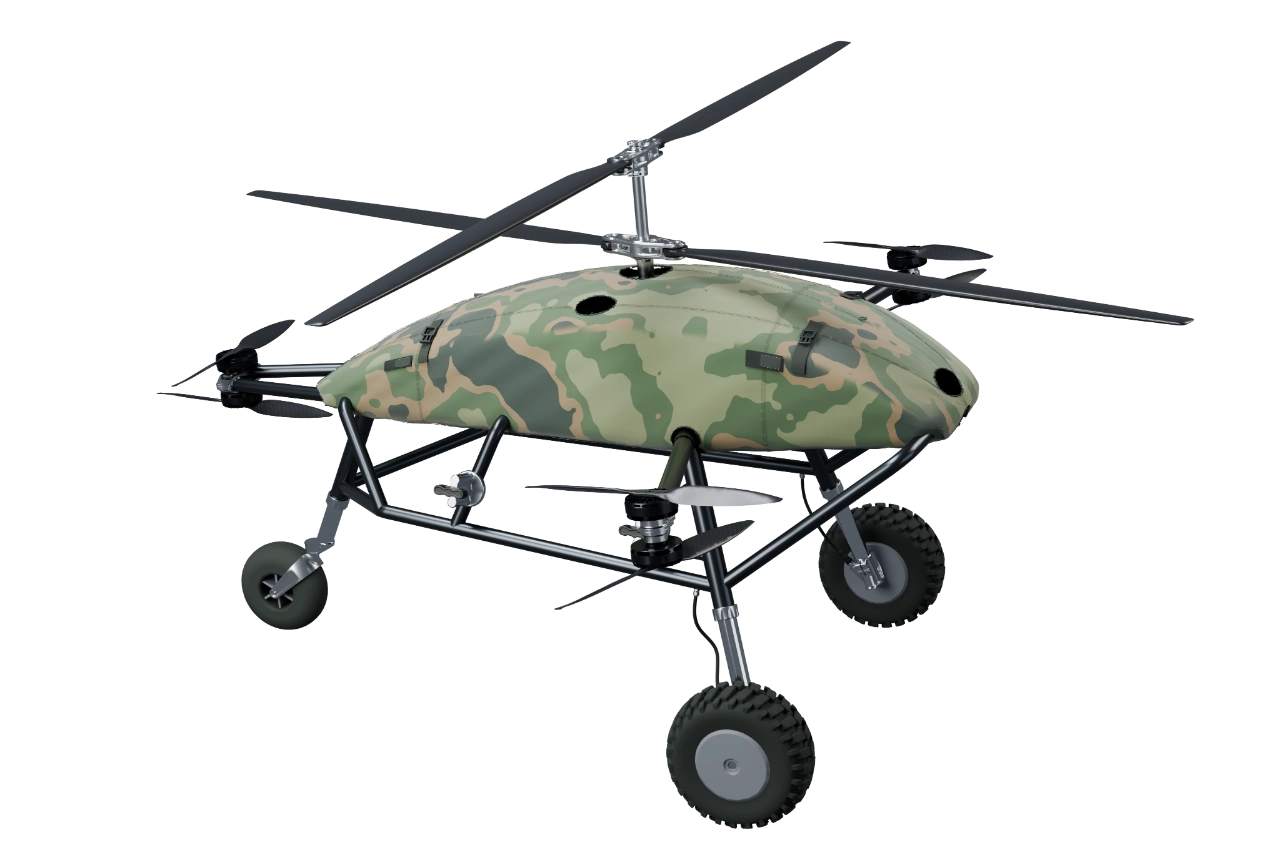

MULTI-MISSION HYBRID VTOL
Compact airframe.
Serious capability.
A modular aircraft with helicopter lift, multicopter precision and the freedom to move on the ground.
01 / COMMON AIRFRAMEBuilt around the mission
- Maximum payload
- 150kg
- Flight time
- 2–8hours
- Maximum takeoff mass
- 260kg
- Powerplant
- Hybrid.
Heavy fuel.
01 / THE PLATFORM
Multicopter precision.
Helicopter lift.
Two coaxial main rotors provide efficient lift. Independently powered electric control propellers provide precise handling. A compact titanium airframe brings both together.

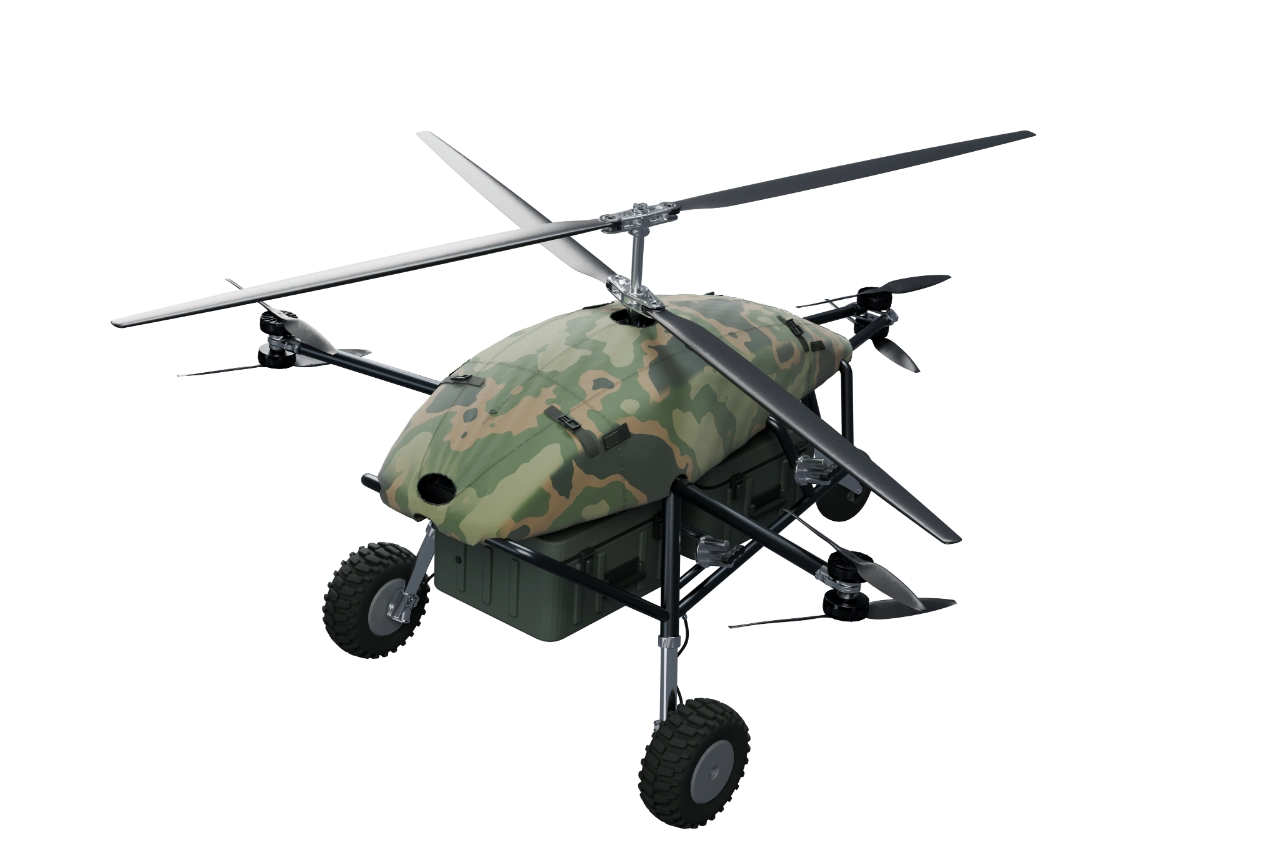

TANDEM CARGO / MODULAR BELLY BAYRoom for your payload.
A large cargo bay accepts containers, mission equipment and custom installations. A winch or external sling carries loads below the aircraft.
A platform, not a single role.
Configure for cargo, resupply, SAR, medical support, airborne relay, observation or aerial application. Keep the common aircraft and ground support.
02 / CONFIGURE YOUR AIRCRAFT
One airframe.
Your configuration.

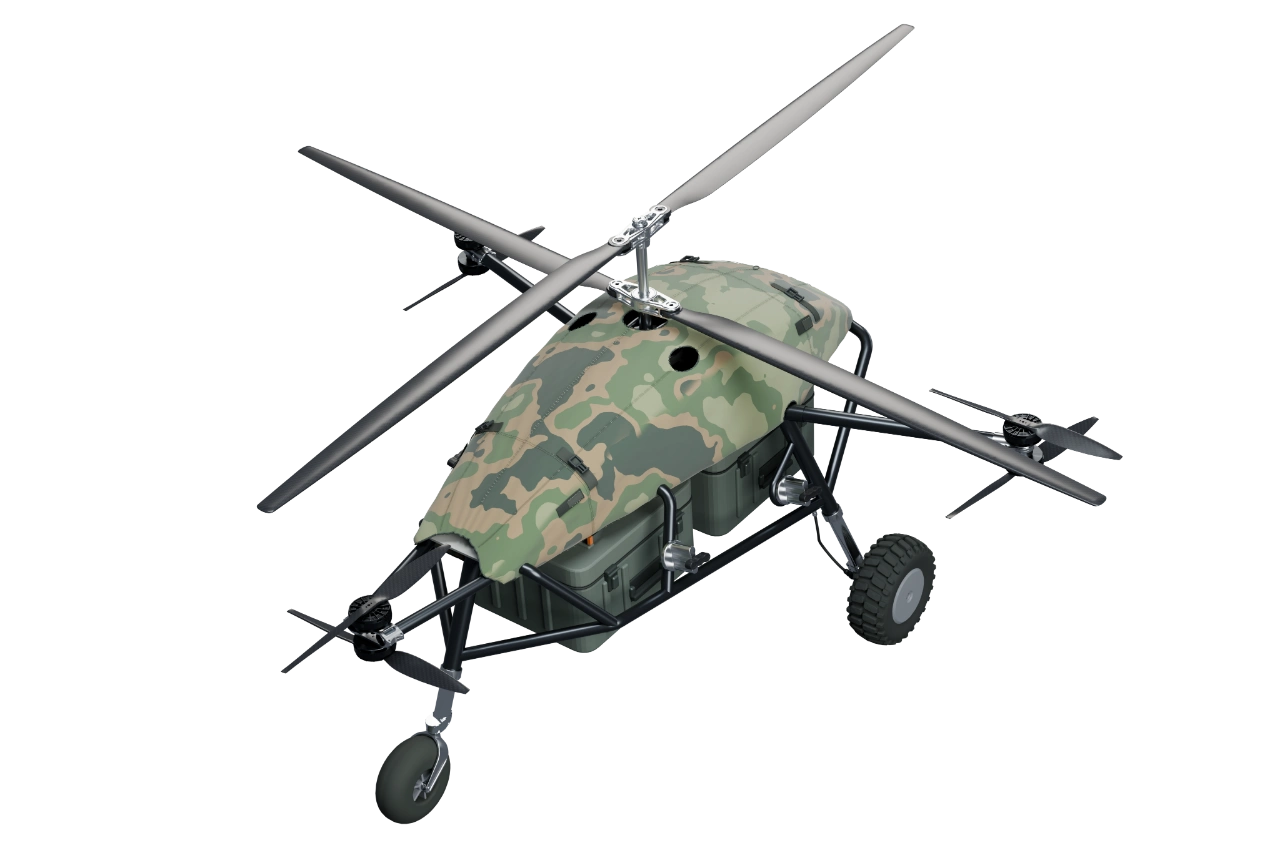

Choose a payload, explore the construction and select a finish. Rotate the actual aircraft assembly to see how it fits together.
TAMML / 3D EXPLORERDrag to rotate · Scroll to zoom
Tandem cargo / WoodlandINTERACTIVE 3D
REPLACEABLE FABRIC COVERS
A finish for the environment.
03 / HYBRID POWER
Built for
the long shift.

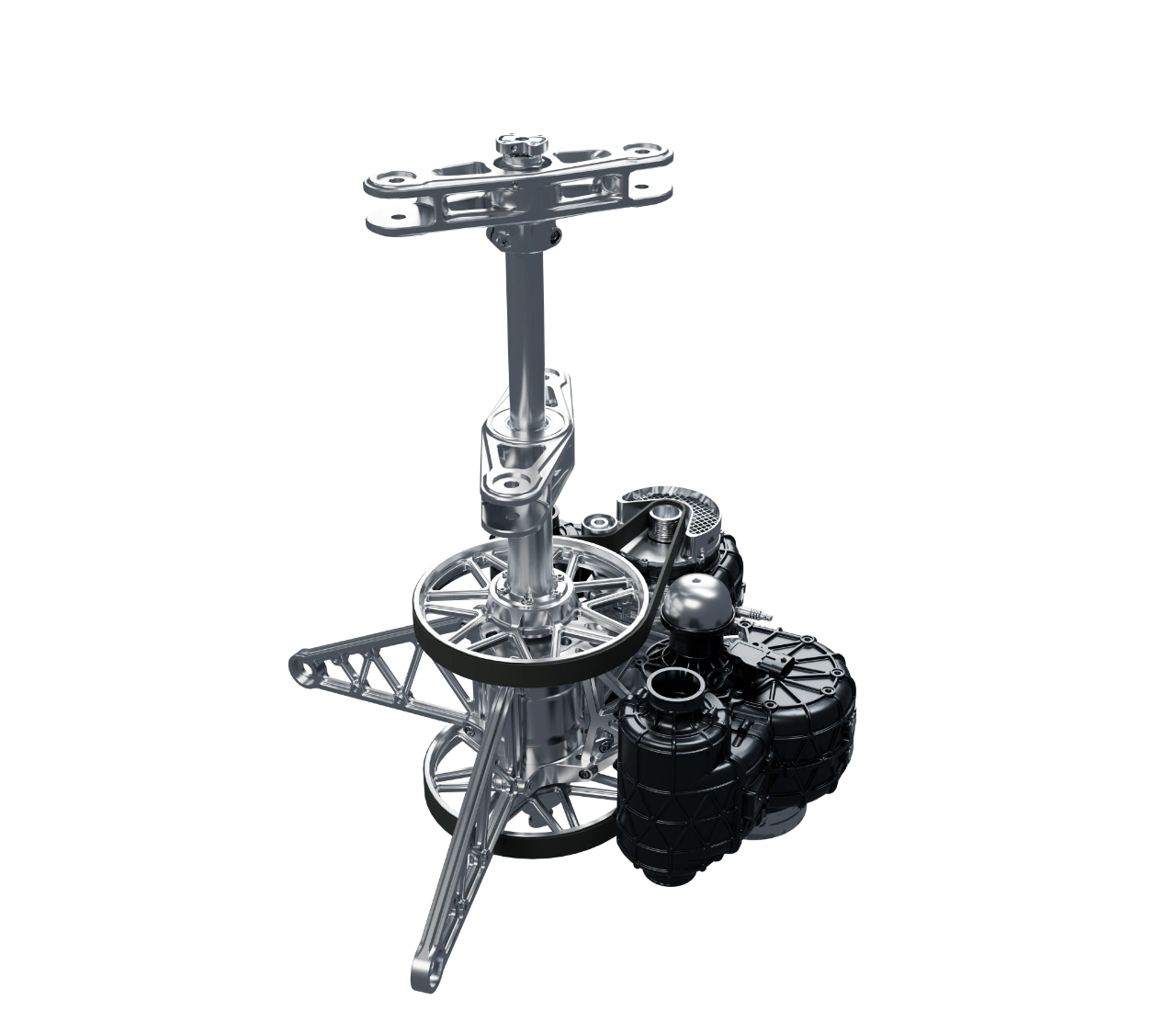

The UAVHE RW2-79C combines two RW1-79 Wankel engines in one coaxial assembly. Forced air cooling, heavy fuel and hybrid electric power support sustained operation.
- Engine power
- 52 hp2 × 26 hp
- Hybrid electric system
- 22 kW
- Fuel
- Jet A-1
JP-8
Quiet, efficient rotors.
Thin carbon blades with titanium-reinforced leading edges. Lower noise than multicopters of comparable lifting capacity.
Precision through electric control.
Three coaxial pairs of electric control propellers, with independent redundant power, manage aircraft attitude.
Power for the mission.
Up to 8 kW for payload equipment. Regulated 12 / 14.4 / 28 / 48 VDC, PoE and USB PD, with XT90 and SurLok interfaces.
04 / AIR TO GROUND
Lands.
Moves.
Gets to work.

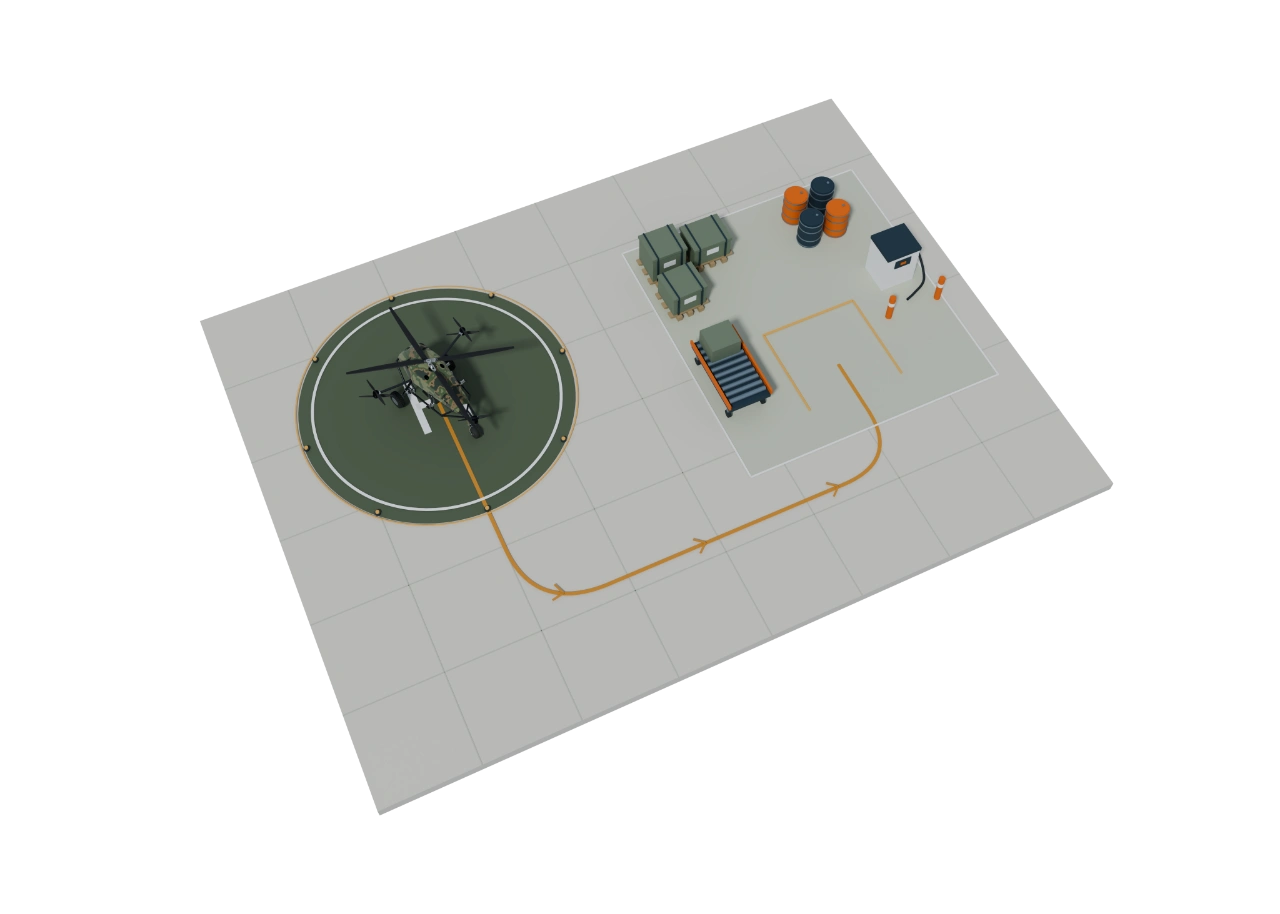

Long-travel, shock-absorbing landing gear and electric wheel drives let TAMML move independently around the apron and takeoff site.
Turn on the spot. Approach an autoloader or unloading station. Move away for refuelling and the next departure.
Explore the specifications ↓
05 / TECHNICAL DATA
The numbers
that define the platform.
A compact airframe, a substantial useful load and the endurance to stay on task.
Ø 3.05 mMain rotor diameter
Airframe: 2.02 × 2.16 × 1.45 m
Length × width × height, excluding rotor sweep.
- Maximum payload
- 150 kg
- Flight time
- 2–8 hours
- Maximum takeoff mass (MTOW)
- 260 kg
- Empty mass
- 70 kg
- Airframe dimensions · L × W × H
- 2.02 × 2.16 × 1.45 m
- Main rotor diameter
- 3.05 m
Structure & landing gear +
- Frame
- Welded titanium
- Main blades
- Carbon with titanium leading edges; quick-release attachment
- Landing gear
- Long-travel shock-absorbing struts; electrically driven wheels
- Ground manoeuvring
- Self-propelled; turn on the spot
- External interfaces
- Modular belly bay, winch and external suspension
Power, fuel & servicing +
- Powerplant
- UAVHE RW2-79C · 2 × RW1-79
- Engine / hybrid electric
- 52 hp / 22 kW
- Fuel
- Jet A-1 / JP-8
- Tank capacity
- 25 L standard; up to 105 L with external tanks
- Service interval / MTBO
- 200 h / 1,000 h
- Operating temperature
- −40 to +50 °C
Payload integration & onboard systems +
- Payload power
- Up to 8 kW
- Power interfaces
- 12 / 14.4 / 28 / 48 VDC; PoE; USB PD; XT90; SurLok
- Network & communications
- Silvus MANET; LEO SATCOM; VHF / airband; TAK and customer C2
- Navigation & landing
- GNSS/INS; Septentrio AsteRx RBi3 Pro with AIM+; UAVLAS; radar altitude; weight-on-wheels
- Awareness
- Full-sphere multispectral cameras; mmWave radar; ADS-B In; AIS
- Local operation
- Onboard service console; VHF voice commands; autonomous ground obstacle avoidance
06 / START WITH YOUR MISSION
Bring your payload.
Let’s put it to work.
Tell us what you need to carry, how long you need to fly and where you will operate. We’ll work through the installation, power and ground handling with you.
